room temperature

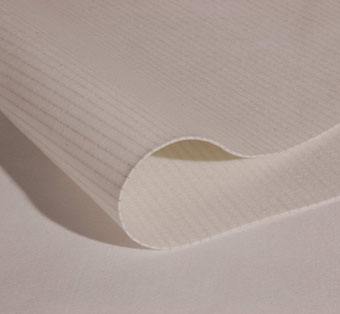

Anti-static needle felt

2018/3/19 22:53:56　阅读次数：820

After the general industrial dust reaches a certain level (ie, the explosion limit), such as electrostatic discharge sparks or external ignition, it is easy to cause explosion and fire. The
factory absorbs and digests foreign technology, according to domestic blast furnace gas coal dust collection and cement. The company needs to develop and produce antistatic needle-punched filter felt and filter cloth for coal dust collection and other industries.

In addition to the process of producing ordinary needle felt, the production of antistatic filter cloth also requires the incorporation of conductive fiber yarns into the warp yarns of the base fabric of the needle felt or the incorporation of conductive fibers or conductive materials into the chemical fibers. Anti-static filter cloth can be produced by
our company . The performance index of anti-static needle-punched filter felt and filter cloth produced by our company is at the leading level in China. It has been tested by authoritative departments as follows:

Material		Polyester + conductive fabric
Gram weight ( g/m2 )		500
Thickness ( mm )		1.80
Air permeability ( L / m2 / S )		200 to 300
Breaking strength ( N/5 × 20cm )	vertical	≥ 1000
	Latitude	≥ 1250
Elongation at break (%)	vertical	<35
	Latitude	<55
Breaking tension ( Mpa/min )		2.40
Working temperature ( °C )		≤ 130
Instantaneous operating temperature ( °C )		150
Surface resistance ( Ω )		4.8 × 109
Volume resistance ( Ω )		8.7 × 109
Friction potential (maximum) (V)		250
Friction potential (average value) (V)		183
Surface nuclear density ( μ C/m2)		3.4
Half-life (S)		0.75
Acid resistance		in
Alkali resistance		in
Abrasive		excellent
Hydrolytic stability		in
Post processing		Heat setting , calendering
