classification
breathable layer series

Permeable layer
2017/12/21 23:26:13 阅读次数:866
The new gas permeable layer is suitable for pneumatic conveying equipment of powder and granular materials, pneumatic conveying tank for cement, alumina and other powder materials, and also suitable for pneumatic conveying equipment of other powder and granular materials, such as trains and automobile bulk powder tankers. It is used as a gasification bed to mix materials with air, in a gasified state, and has good fluidity to improve transportation efficiency. If used in the cement raw material homogenization warehouse, the cement raw material can be evenly stirred.

  The pneumatic conveying device and the gasification bed device using the device have been widely used in metallurgy, building materials, chemical industry, power plant, food and transportation industries, and have achieved good results. Since the material is vaporized during transportation, the equipment is not damaged by friction, which reduces the maintenance of the equipment. At the same time, the material is transported in a closed chute to ensure that the environment is not polluted. The new gas permeable layer produced by our company is made of high-quality cotton yarn and chemical fiber with heat resistance and corrosion resistance. It is woven according to specific requirements on special equipment. Its technical performance and product quality have reached the advanced level of similar products in the world. And has the following advantages:   

1. The cloth pattern is clear, flat, stable in size, and not deformed.   

2. Good air permeability, uniform airflow and stability.   

3. Heat, abrasion and corrosion resistance.

4. Less energy consumption, long life and minimal maintenance.



Optional material

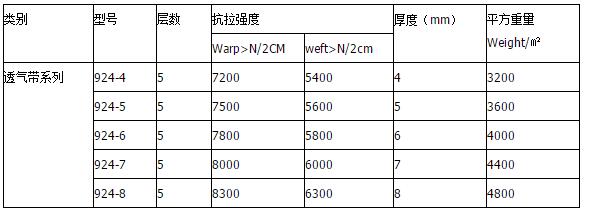

data

Polyester short weft

Operating temperature : -60 °C to 240 °C

Polyester filament

Thickness : 4 mm to mm

Aramid high temperature material

Weight : 2500gsm to 6800gsm.

cotton

Standard length up to 800m / roll

Electrostatic fiber

Strength (N/cm): by : 4000 to 10000 latitude : 2500 to 8000
